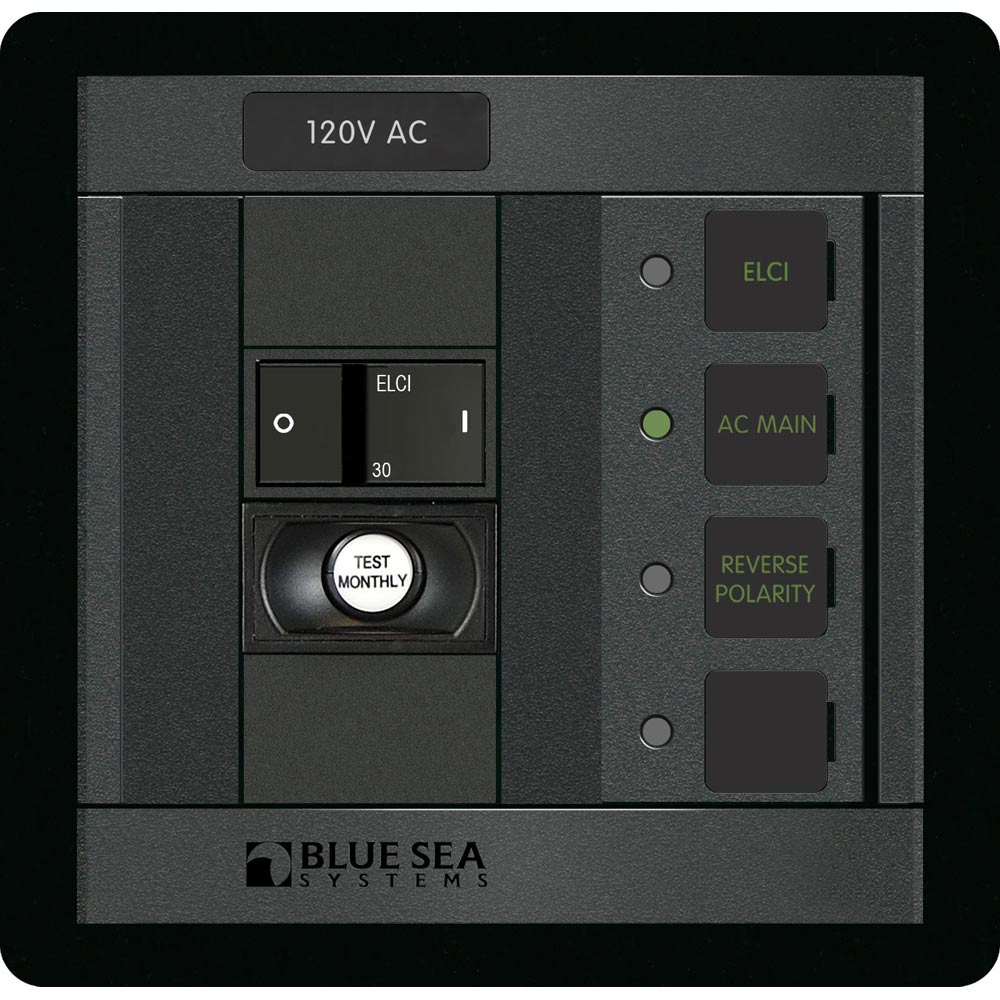

Blue Sea 1502 ELCI Main 30A Double Pole Panel [1502]
Regular price$754.99
- Low stock - 7 items left
ELCI Main 30A Double Pole Panel
Features:
- One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA
- ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection
- Red " Reverse Polarity" LED
- All circuit label positions are backlit
- "ON" indicating LEDs
Specifications:
-
Positions: 1
-
Nominal Voltage: 120V AC
-
Height: 4.75" (120.65mm)
-
Width: 4.88" (123.95mm)
-
Depth: 3.00" (76.2mm)
- Weight: 1.10lb (0.5kg)
Includes:
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- AC/DC: AC
- Box Dimensions: 6"H x 6"W x 9"L WT: 2.2 lbs
- UPC: 632085015022
Quick Guide (pdf)
Owner's Manual (pdf)
