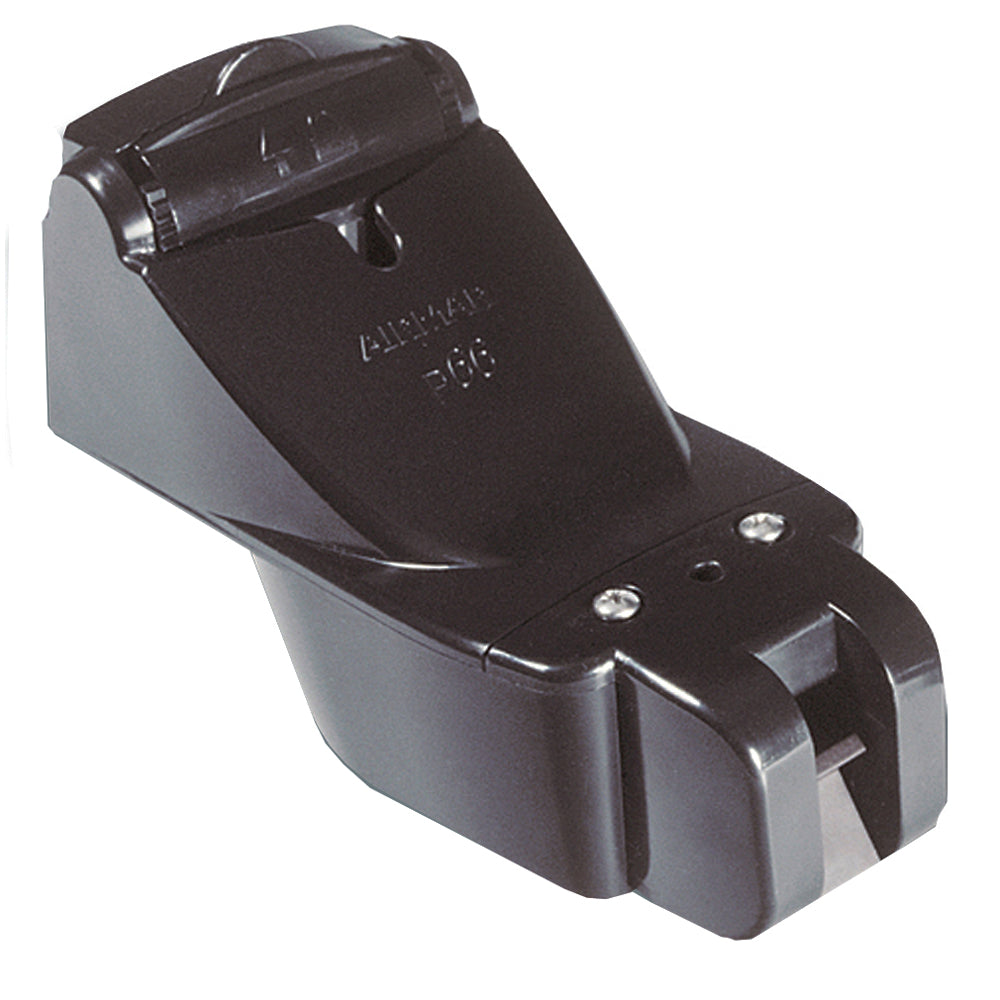

Raymarine Optional High Speed TM Transducer [E66054]

Optional High Speed Transom Mount Transducer
600 Watt Optional High Speed transom mount transducer with depth speed and temperature. Dual Frequency 200/50 KHz. (P66)

Compatible with the following Echo Sounders:

SL Series: SL755RC, SL760RC , SL1250, and SL1250RC

hsb2 Plus Series: L755RC, L760, L760RC, L1250,and L1250RC

hsb2 HDFI Series: DSM250, L770D, L770DRC, L1260D, and L1260DRC

Compatible hull material: metal, wood and fiberglass

Max Power: 600 W

Frequency: 200/50 kHz

Beam Angles: 200 kHz 11 50 kHz 45

Features:

30ft (10m) Cable

Replaceable paddle wheel assembly

**requires E66066 adapter cable to go the Raymarine a,c,e,eS Series

Specifications:

• Temperature: Yes
• Speed Included: Yes
• Mounting Style: Transom
• Imaging: Standard
• Chirp: No
• Cable Length (Feet): 30'
• Box Dimensions: 5"H x 7"W x 10"L WT: 2.8 lbs
• UPC: 801769004328
