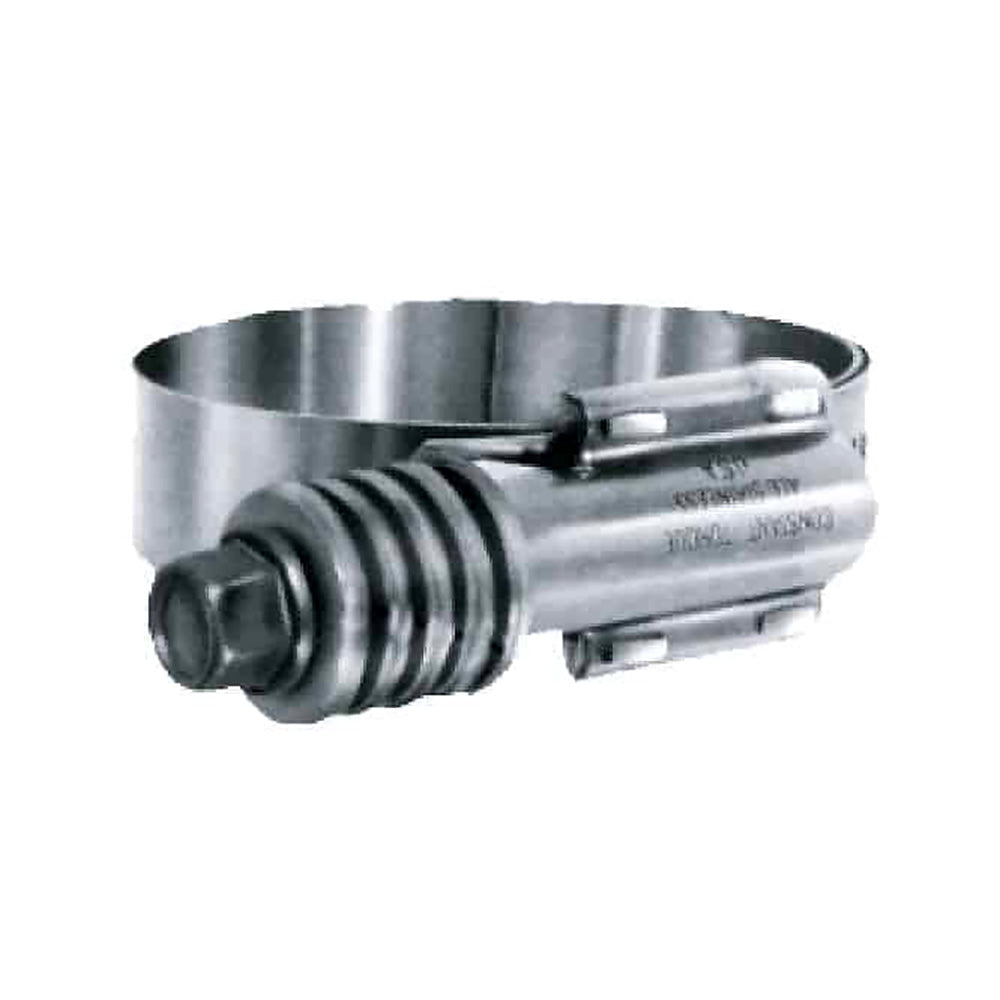

![Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4", Hose O.D. - 4.25" TO 5.125" [730-4000]](http://ptg-outdoors.myshopify.com/cdn/shop/files/115306XL.jpg?v=1788577880&width=1080)
Trident Marine Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4", Hose O.D. - 4.25" TO 5.125" [730-4000]
- Low stock - 8 items left
- Backordered, shipping soon
Stainless Steel Constant Torque Clamp 5/8" Band, Hose I.D. - 4", Hose O.D. - 4.25" TO 5.125"
Virtually all rubber hose compresses (cold flow) after installation of a clamping device, resulting in an almost immediate torque loss that can exceed 80% of installation torque. Similarly, virtually all metal connections expand as a system heats up, and then contract as the system cools. Conventional worm gear, T-bolt, and other clamps are passive, in that expansion or contraction of components cannot be compensated for without re-tightening or loosening the clamps. This clamping system is an “active” clamping mechanism, which monitors and then compensates for the changes by actually changing diameter through a unique worm gear Belleville assembly.
Specifications:
- Recommended max. torque - smaller ID. Sizes up to 730-3000: 30 to 70 in.-lbs, larger ID. Sizes above 730-3000: 50 to 120 in.-lbs.
- Hose I.D. - 4", Hose O.D. - 4.25" TO 5.125"
Construction:
- Band & Housing: 304 Stainless Steel 5/8” Wide Band
- Bellville Spring Washers & Screw: 401 Stainless Steel
